Spring Cloud OpenFeign#
约 329 个字 17 行代码 2 张图片 预计阅读时间 7 分钟
入门案例#
服务消费者引入依赖:
pom.xml
<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">
<modelVersion>4.0.0</modelVersion>
<parent>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-parent</artifactId>
<version>3.3.5</version>
<relativePath/> <!-- lookup parent from repository -->
</parent>
<groupId>com.luguosong</groupId>
<artifactId>open-feign-consumer</artifactId>
<version>0.0.1-SNAPSHOT</version>
<name>open-feign-consumer</name>
<description>open-feign-consumer</description>
<url/>
<licenses>
<license/>
</licenses>
<developers>
<developer/>
</developers>
<scm>
<connection/>
<developerConnection/>
<tag/>
<url/>
</scm>
<properties>
<java.version>17</java.version>
</properties>
<dependencies>
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-web</artifactId>
</dependency>
<dependency>
<groupId>com.alibaba.cloud</groupId>
<artifactId>spring-cloud-starter-alibaba-nacos-discovery</artifactId>
</dependency>
<!--负载均衡-->
<dependency>
<groupId>org.springframework.cloud</groupId>
<artifactId>spring-cloud-starter-loadbalancer</artifactId>
</dependency>
<!--OpenFeign-->
<dependency>
<groupId>org.springframework.cloud</groupId>
<artifactId>spring-cloud-starter-openfeign</artifactId>
</dependency>
<dependency>
<groupId>org.projectlombok</groupId>
<artifactId>lombok</artifactId>
</dependency>
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-test</artifactId>
<scope>test</scope>
</dependency>
</dependencies>
<dependencyManagement>
<dependencies>
<dependency>
<groupId>org.springframework.cloud</groupId>
<artifactId>spring-cloud-dependencies</artifactId>
<version>2023.0.3</version>
<type>pom</type>
<scope>import</scope>
</dependency>
<dependency>
<groupId>com.alibaba.cloud</groupId>
<artifactId>spring-cloud-alibaba-dependencies</artifactId>
<version>2023.0.1.2</version>
<type>pom</type>
<scope>import</scope>
</dependency>
</dependencies>
</dependencyManagement>
<build>
<plugins>
<plugin>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-maven-plugin</artifactId>
</plugin>
</plugins>
</build>
</project>
服务消费者启动类配置@EnableFeignClients
:
OpenFeignConsumerApplication.java
package com.luguosong.openfeignconsumer;
import com.luguosong.openfeignconsumer.config.DefaultFeignConfig;
import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.cloud.openfeign.EnableFeignClients;
@EnableFeignClients(defaultConfiguration = DefaultFeignConfig.class)
@SpringBootApplication
public class OpenFeignConsumerApplication {
public static void main(String[] args) {
SpringApplication.run(OpenFeignConsumerApplication.class, args);
}
}
定义接口:
ProducerClient.java
package com.luguosong.openfeignconsumer.client;
import org.springframework.cloud.openfeign.FeignClient;
import org.springframework.web.bind.annotation.GetMapping;
/**
* @author luguosong
*/
@FeignClient(value = "open-feign-producer")
public interface ProducerClient {
@GetMapping("/demo")
String demo();
}
调用:
TestController.java
package com.luguosong.openfeignconsumer.controller;
import com.luguosong.openfeignconsumer.client.ProducerClient;
import lombok.RequiredArgsConstructor;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.RestController;
/**
* @author luguosong
*/
@RestController
@RequiredArgsConstructor
public class TestController {
private final ProducerClient client;
@GetMapping("/test")
public String test() {
return client.demo();
}
}
连接池#
OpenFeign底层默认使用HttpURlConnection
进行网络请求,不支持连接池。
可以自定义配置Apache HttpClient
或OKHttp
进行网络请求,这两种都支持连接池。
以OKHttp
为例,先引入依赖:
XML
<dependency>
<groupId>io.github.openfeign</groupId>
<artifactId>feign-okhttp</artifactId>
</dependency>
在配置文件中进行配置:
最佳实践#

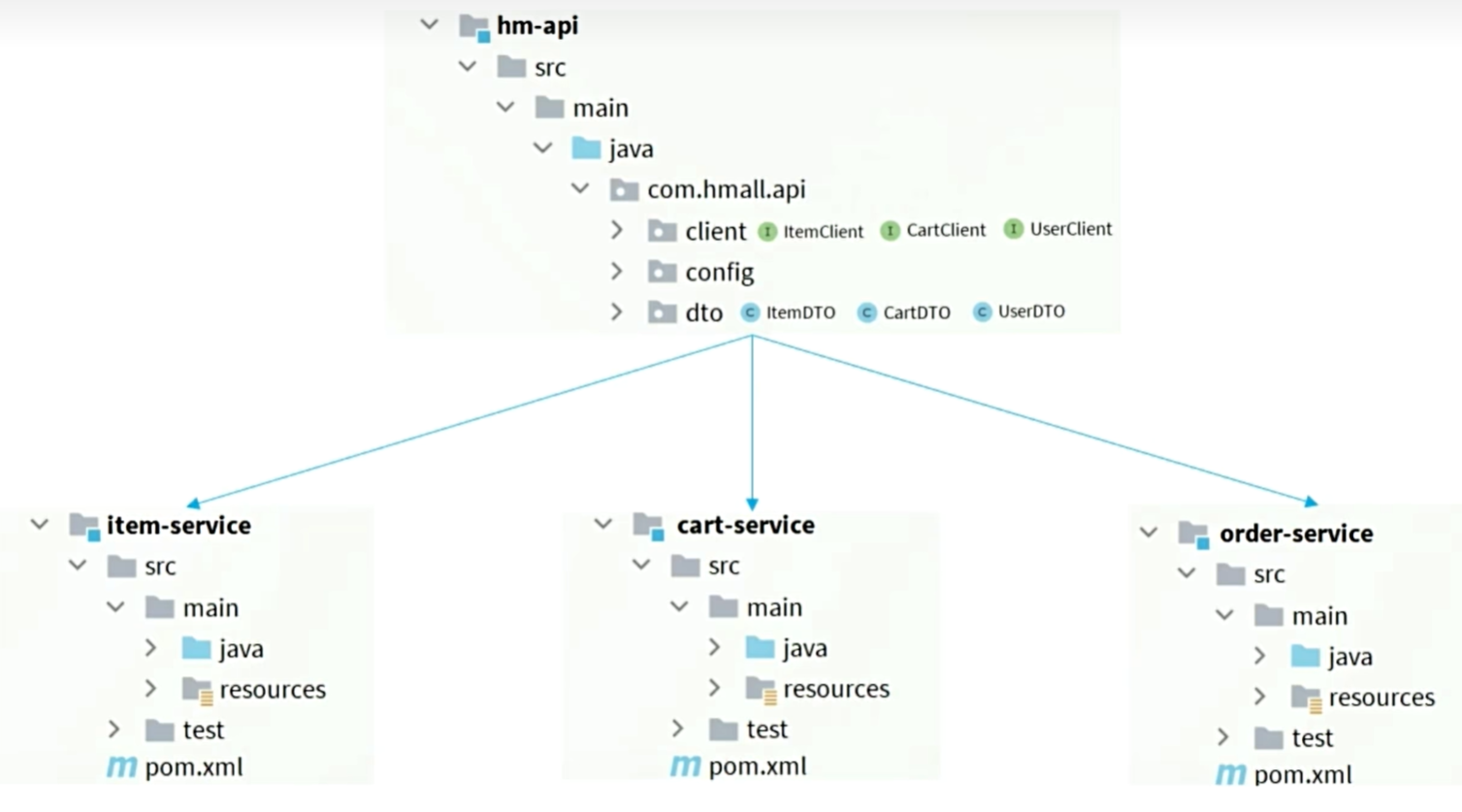

方案一#
将服务生产者拆分为service
(业务代码)、dto
(存放数据传输对象)、api
(存放Feign接口)模块。

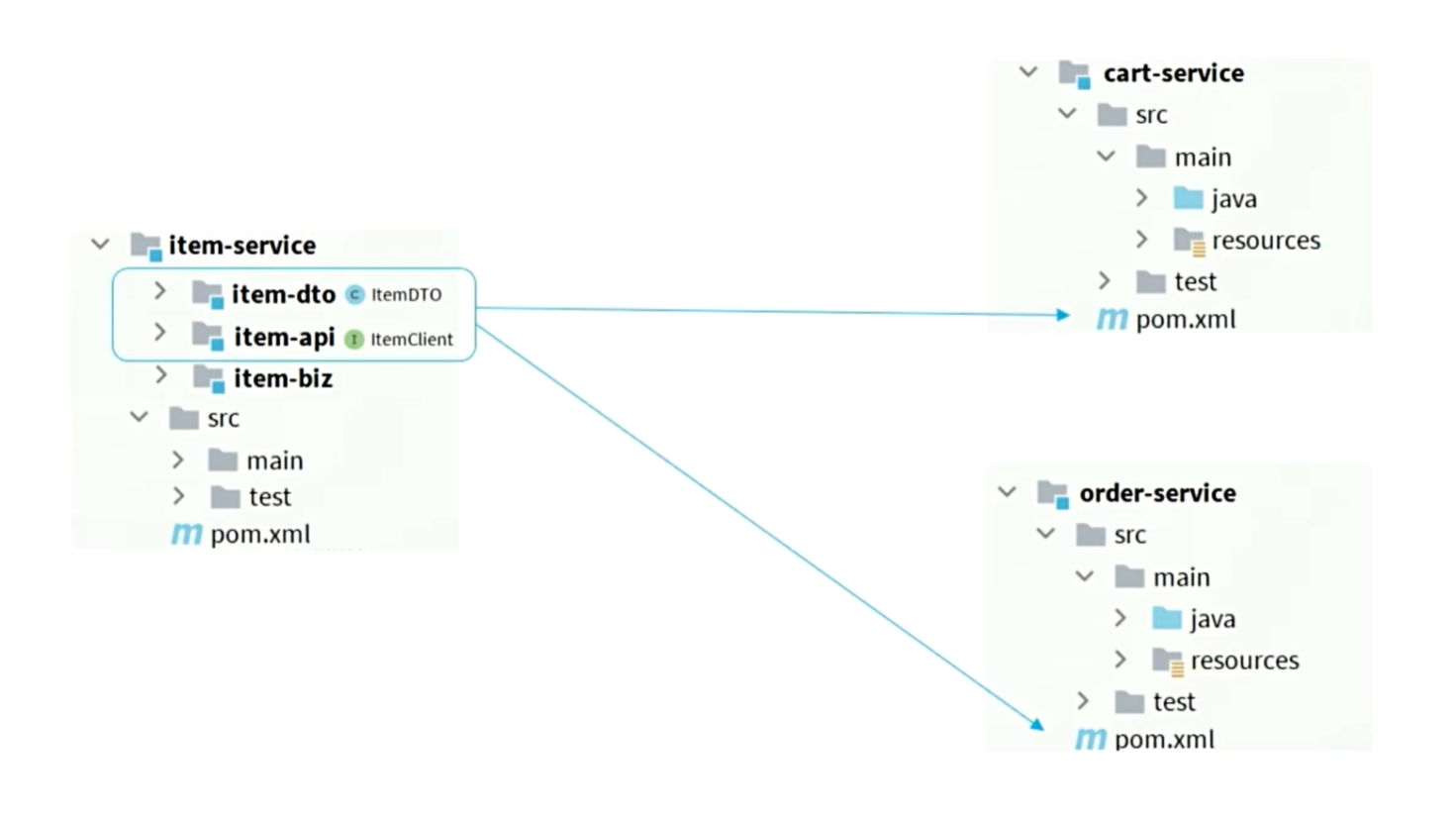

方案二#
将Feign接口全部存放在同一个接口中。
Note
当Open Feign 接口所在包名与服务消费者模块包名不一致时,需要在启动类中手动指定包名:
@EnableFeignClients(basePackages = "com.luguosong.api")
日志记录#
- 配置FeignClient所在包的日志级别为
DEBUG
。 - 设置OpenFeign的日志级别。
OpenFeign有如下日志级别:
日志级别 | 日志内容 |
---|---|
NONE | 默认值,不记录日志 |
BASIC | 仅记录请求的方法、URL以及响应状态码和执行时间 |
HEADERS | 在BASIC的基础上,额外记录了请求和响应头消息 |
FULL | 记录请求和响应的头信息、请求体、元数据 |
DefaultFeignConfig.java
package com.luguosong.openfeignconsumer.config;
import feign.Logger;
import org.springframework.context.annotation.Bean;
/**
* @author luguosong
*/
public class DefaultFeignConfig {
@Bean
public Logger.Level level() {
return Logger.Level.FULL;
}
}
局部生效:
全局生效:
